Digital UV Jig Design File for Mimaki UJF-6042 | Cups, Tumblers & Bottles

Take the guesswork out of repeatable cup and tumbler printing with this custom UV jig design package for the Mimaki UJF-6042.

This is a digital download, not a physical jig. You’ll receive the design files needed to create a modular jig system that holds cups and bottles in a consistent, repeatable position for UV printing. The design uses a swappable saddle system, making it easy to adapt the jig for different drinkware shapes and production quantities without starting from scratch every time.

The included setup was designed around real-world production use and is ideal for shops looking to streamline printing on cups, tumblers, and bottles with better positioning consistency and faster setup.

What makes this jig useful?

• Swappable saddle system for flexibility
• Designed for repeatable placement
• Makes it easier to run multiple identical pieces at once
• Includes blank saddle templates so you can create your own variations
• Includes the RasterLink jig layout file to help with setup

Included premade saddle options

This file package includes premade saddle designs for:

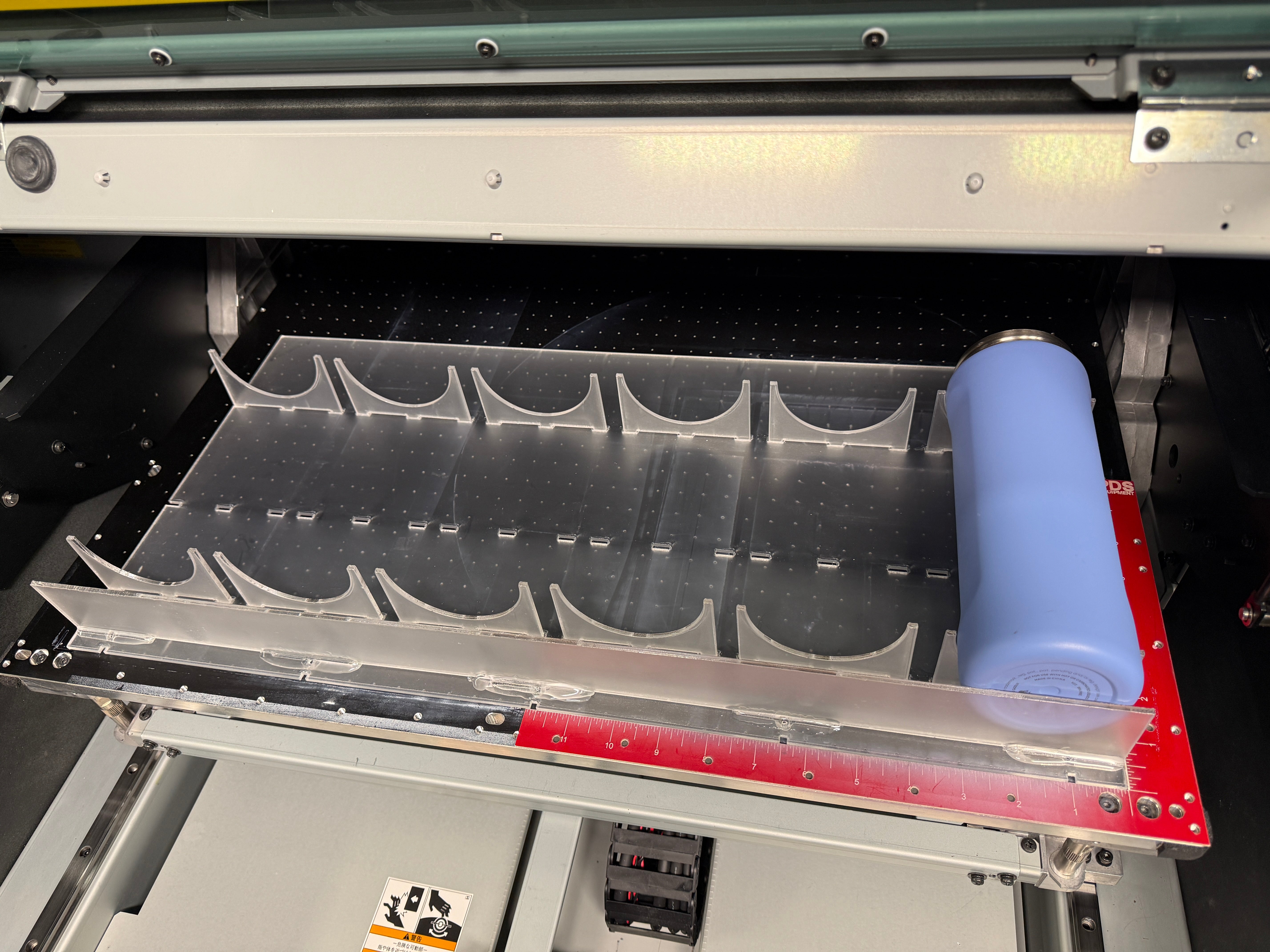

• 6x Owala 24oz FreeSip bottles

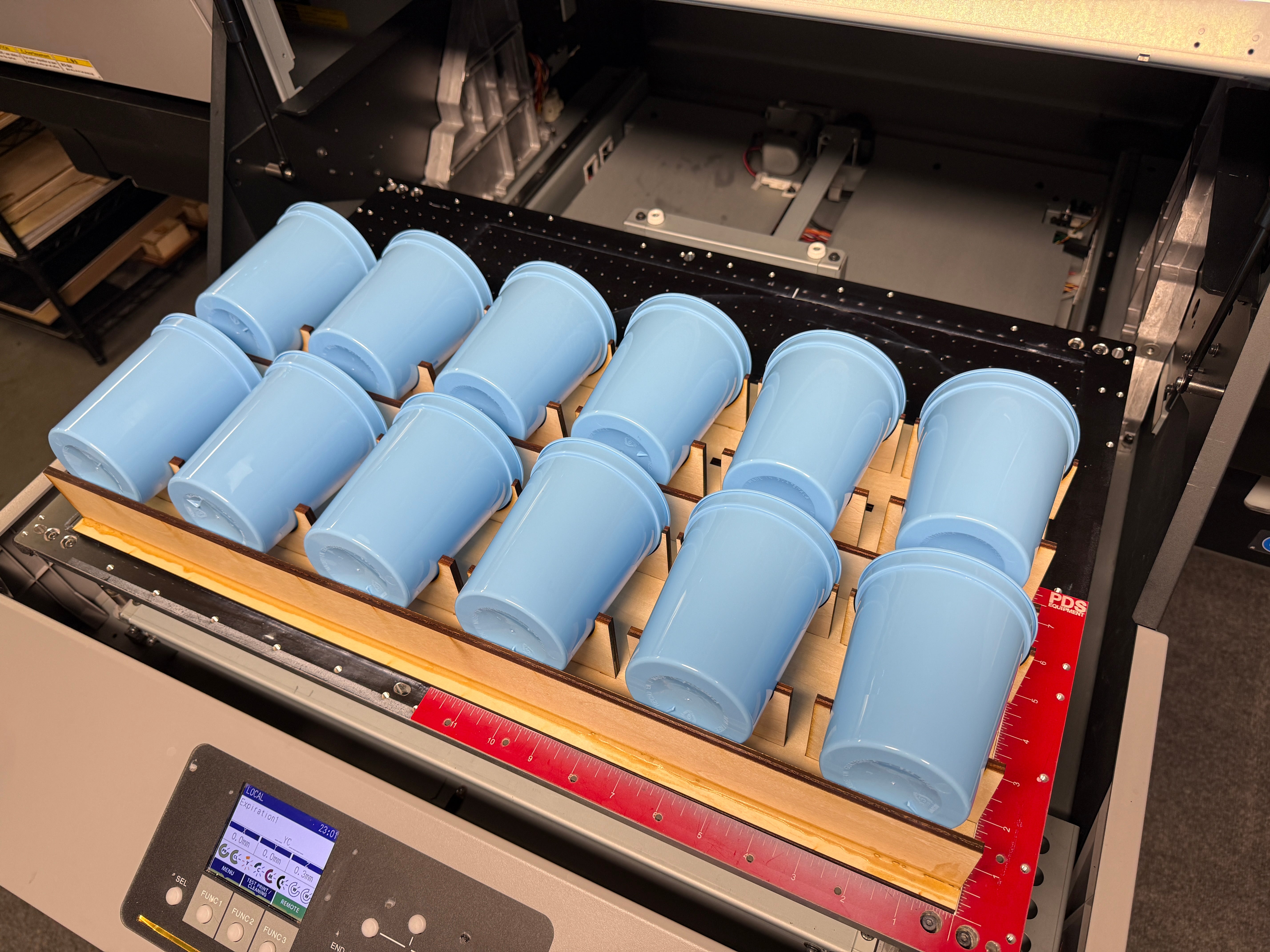

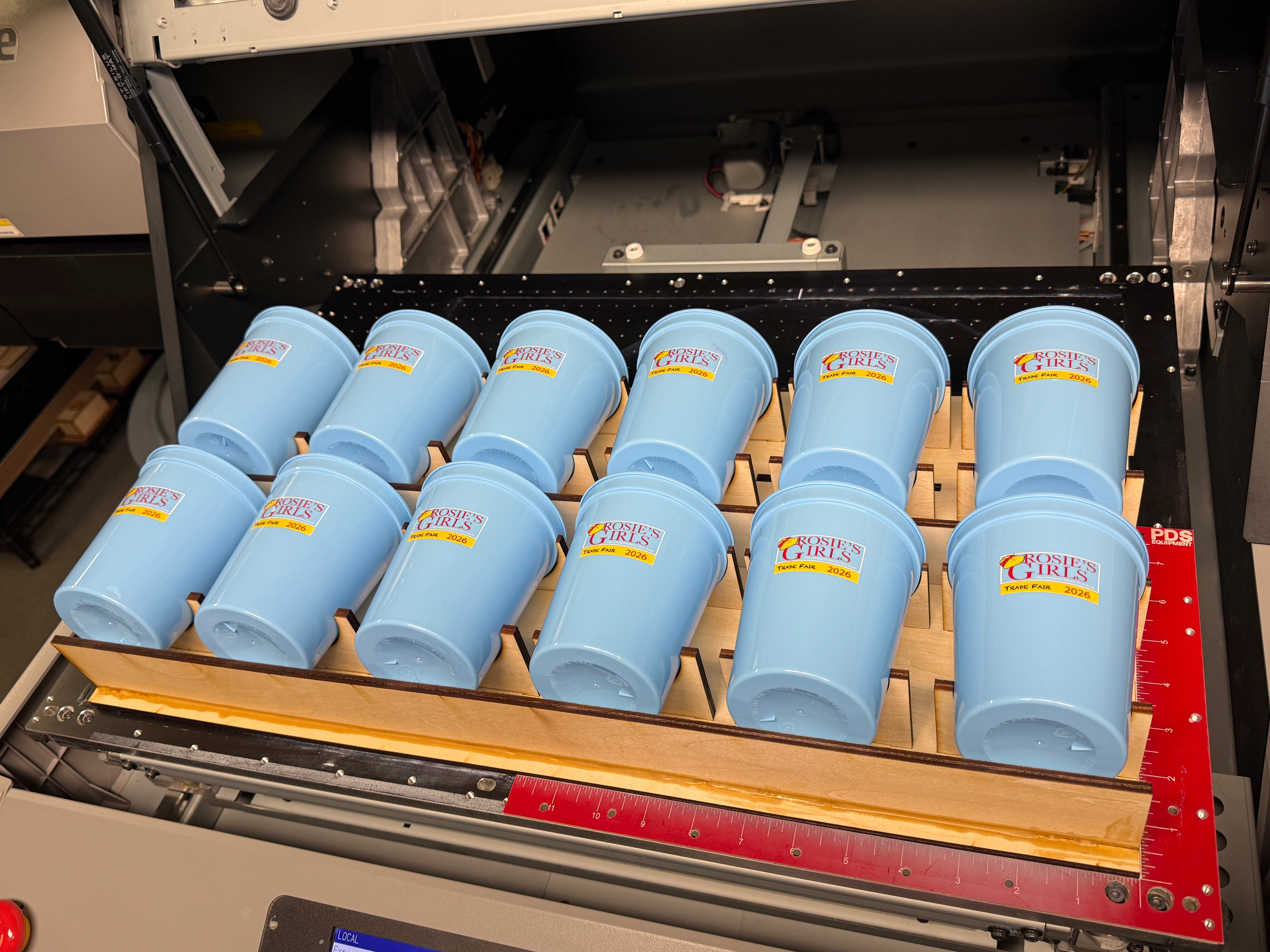

• 12x tapered 12oz plastic cups

In addition, I’ve included premade blank saddle shapes that can be easily edited with boolean operations so you can create custom saddles for different diameters, tapers, and profiles.

What’s Included

Your digital download includes:

• Main jig base plate design
• Swappable saddle design files
• Premade saddle sets for:
  • 6x Owala 24oz FreeSip bottles
  • 12x tapered 12oz plastic cups
• Blank saddle templates for creating your own custom fitments
• RasterLink jig layout file
• Reference layout/setup files shown in listing images

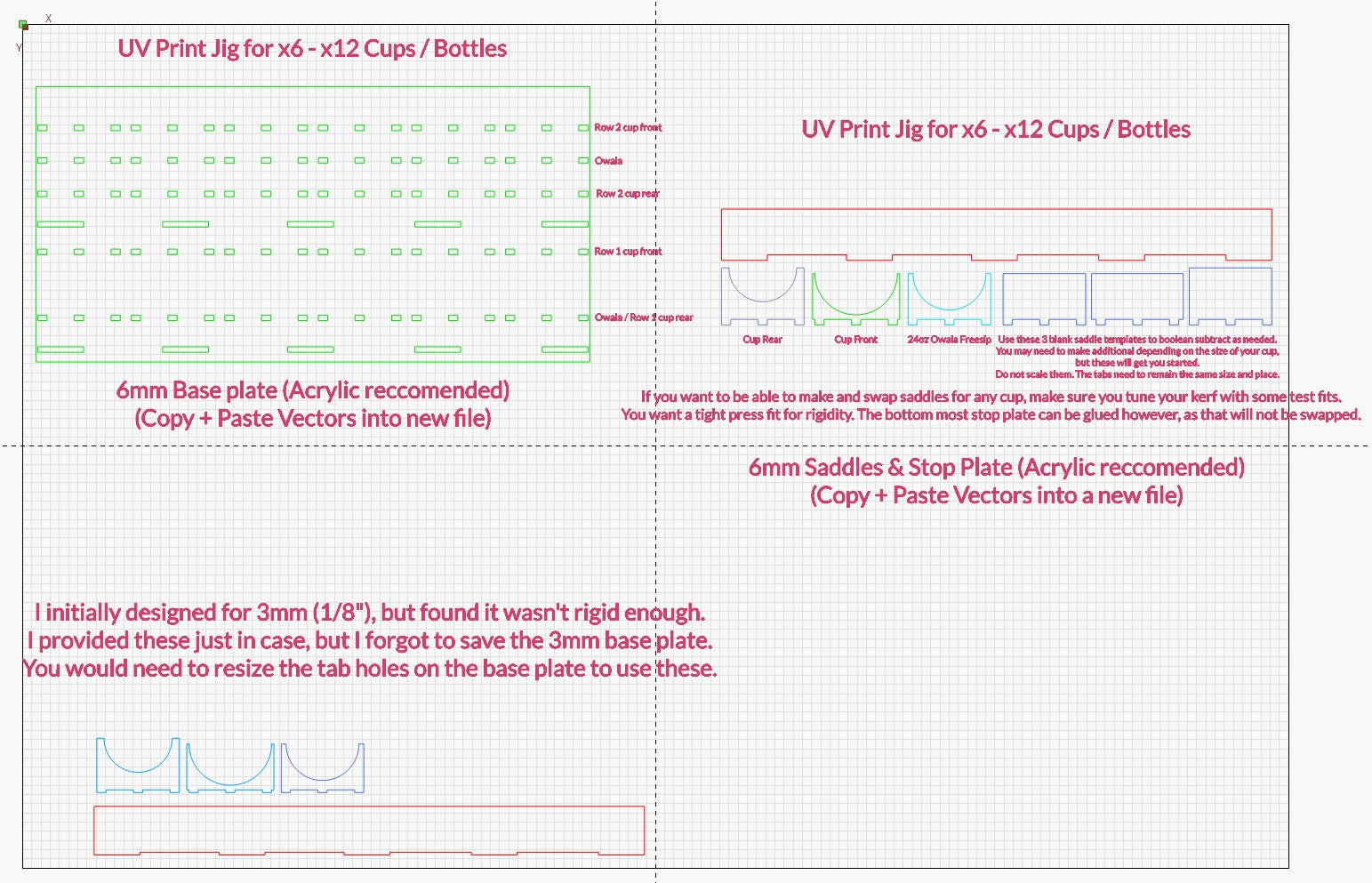

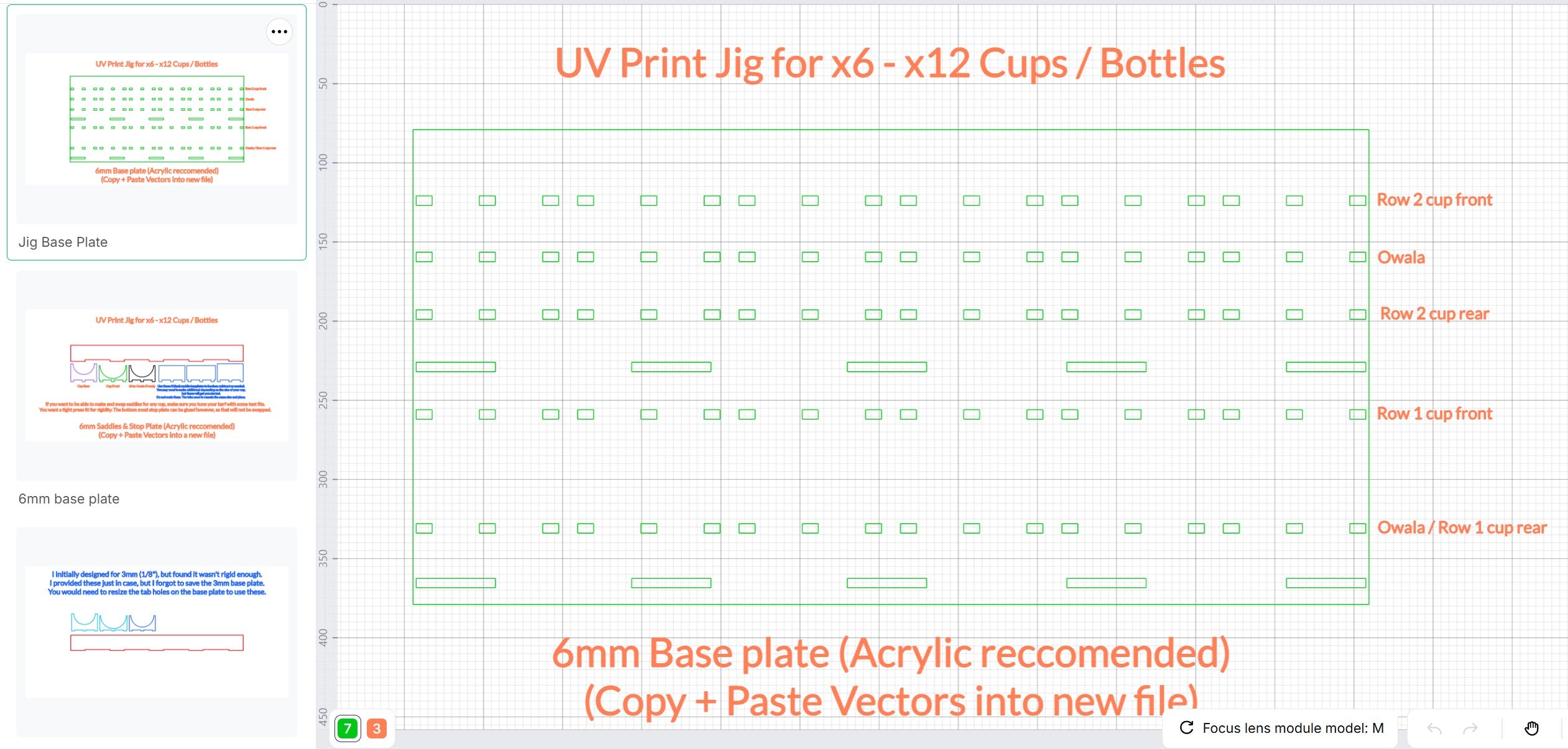

• Provided file types: XCS, LIGHTBURN, SVG, and the Rasterlink7 jig import file

Compatibility

Designed for:

• Mimaki UJF-6042

Best suited for users who:

• Already run a Mimaki UV printer
• Are comfortable editing or working with vector/cut files
• Want a modular jig they can customize for new cup and bottle shapes

Important Notes

• Digital product only — no physical jig, material, or hardware will be shipped.
• You will need to cut and assemble the jig yourself.
• Some fitment adjustment may be needed depending on your exact cup or bottle dimensions, material thickness, and production preferences.
• This file is intended for users with basic familiarity in vector editing, jig setup, and UV printing workflow.
• Results may vary depending on your machine setup, material thickness, cup variation, and print alignment process.

Materials / Build Notes

This design was created as a modular jig system with interchangeable saddles. 6mm acrylic is recommended for rigidity and repeatability, though users may adapt materials based on their workflow and preferences.

Please make sure to tune your kerf for your specific laser with some test cuts. You want the saddles to require a firm press fit and sit snug - This will give you the repeatability you need from a jig, while maintaining the ability to hot swap saddles as needed.

Ideal For

• UV print shops
• Small product customization businesses
• Drinkware decorators
• Mimaki users who want a flexible jig platform for multiple cup types

File Delivery Notice

After purchase, you will receive access to your digital download files. No physical item will be mailed.
